معرض الصور
ماكينات CO2 ليزر

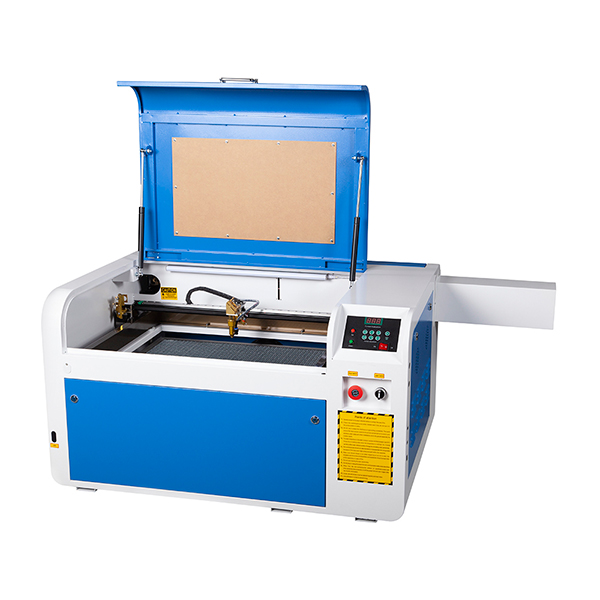

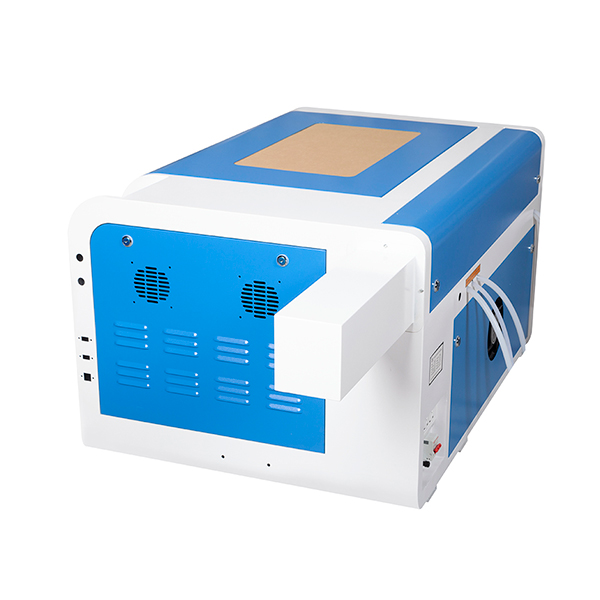

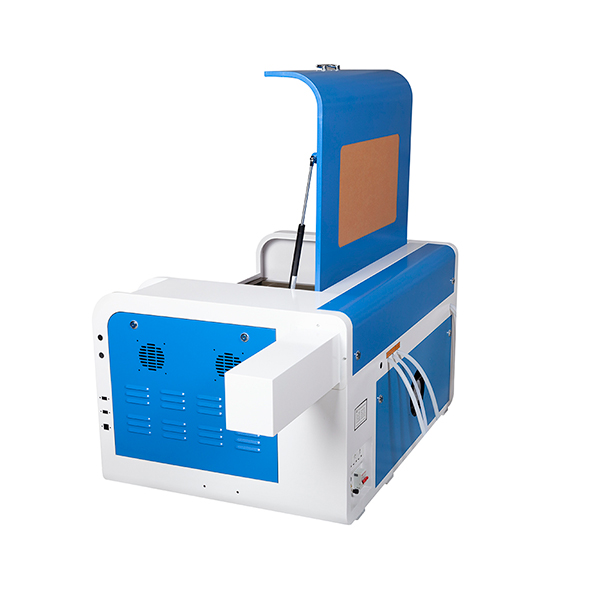

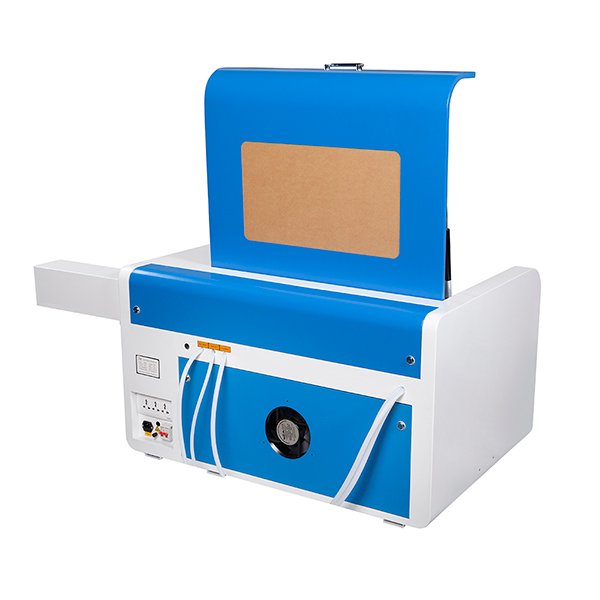

ماكينة حفر ليزر FST 6040-M2
FST 6040-M2 Laser Engraving Machine
المواصفات
- Model
- FST-6040
- Laser type
- sealed CO₂ glass laser tube
- Laser power
- 40W/50W/60W/80W/100W
- Engraving speed
- 0-30000mm/min
- Cutting speed
- 0-3600mm/min
- Working voltage
- 220V±10% 50HZ ,110V±10% 60HZ
- Laser focal length
- 5CM.
- Working area
- 400*600mm
- Working platform
- Aluminum Knife Worktable or Honeycomb Worktable
- Cutting thickness
- 0-20mm ( depends on materials)
- Resolution rate
- ±0.05mm
- Data transfer interface
- USB 2.0
- Min shaping character
- Character: 2*2mm letter: 1*1mm
- Supported graphic formats
- BMP PCX TGA TIF PLT CDR
- Software
- CoreIDRAW
- Operating temperature
- 0-45°C
- Operating humidity
- 5%-90%
- Resolution ratio
- <4500DPI
- Optional parts
- Rotary Axis, Water Chiller
- Warranty
- The whole machine 1 year (except the laser tube and mirrors lens )
- Package
- Plywood
- Features
- Adjustable Speed and Power, Smooth and Precise Engraving and Cutting. Air Assist, Remove heat and combustible gases from the cutting surface. Embedded Exhaust Fan, Easier install, Safer transport. Rotary Axis, Engrave any cylindrical object. (Optional parts) Aluminum Knife Worktable or Honeycomb Worktable. Intuitive Control Panel, Set Speed, power and more controls directly from the laser. Water Cooling and Protection System. Red light positioning. Emergency Stop Button. Larger Size, 400*600mm working area. The lifting platform is electric control. Drag – and – chain transmission line.
